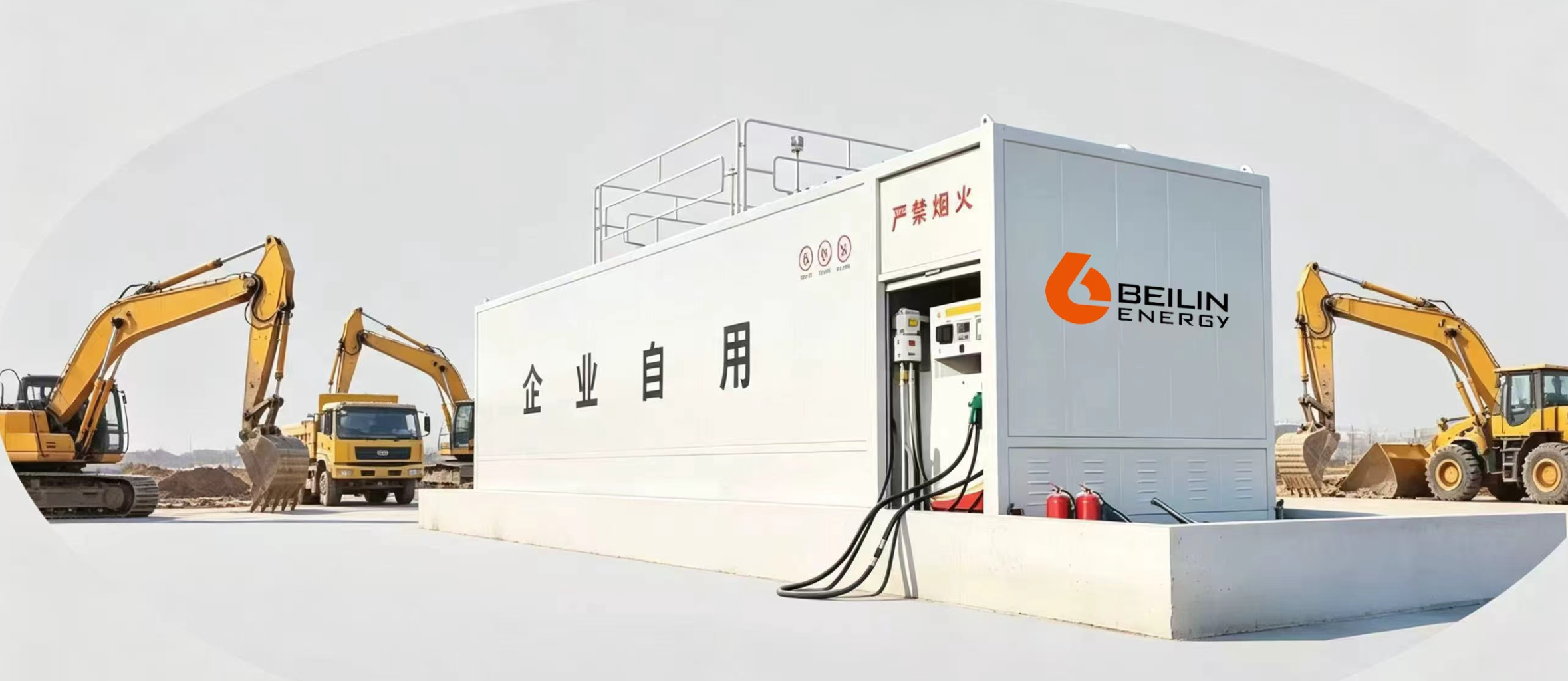

The Explosion-Proof Skid-Mounted Fueling Station (also known as a Mobile Gas Station) is a ground-level fueling system manufactured according to national standards. It integrates a fireproof and explosion-proof storage tank, an explosion-proof fuel dispenser, and an automatic fire extinguishing device into a single steel skid.
Designed to solve fueling challenges for enterprises with high fuel consumption or remote locations, this system offers a highly cost-effective, space-saving, and rapidly deployable solution. It is ideal for internal corporate use, logistics parks, mining sites, and commercial operations.
Highly Customizable Capacity: Available storage capacity ranges from 1 to 50 cubic meters to meet various operational scales.
Flexible Dispensing Options: Equipped with 1 to 4 fuel nozzles (single or dual guns per dispenser).
Power Compatibility: Supports both 220V and 380V power supply options.
Rapid Deployment: Pre-assembled at the factory, requiring only basic site preparation for quick installation.
Cost-Effective: Significantly lower investment cost compared to traditional brick-and-mortar gas stations.
Space-Saving: Compact design requires only a small footprint.
Environmentally Friendly: Built-in safety and environmental protection measures.
Storage Capacity Options:
Available in 5, 10, 15, 20, 25, 30, 35, 40, and 50 cubic meters.
Compartment Configurations (For Different Fuel Types):
Single Fuel Type (1 Compartment): For storing only Diesel or Gasoline (applicable to 1-20m³ units).
Dual Fuel Types (2 Compartments): Can store both Gasoline and Diesel simultaneously. Units from 21-50m³ must have at least 2 compartments.
Three Fuel Types (3 Compartments): Allows simultaneous storage of three different fuel types (e.g., 1 Diesel and 2 Gasoline, or 2 Diesel and 1 Gasoline).
Safety is the core of our design. National qualification agencies have tested our skid-mounted tanks under extreme conditions. The tests confirmed that gasoline and gas stored inside will not explode even under direct open flame burning or gunfire.
Compliance Standards:
SH/T3134-2002: Technical specifications for gas stations using skid-mounted fueling devices.
GB50156-2014: Code for design and construction of automobile gasoline and gas filling stations.
AQ/T3002-2021: Technical requirements for barrier explosion-proof skid-mounted automobile fueling (gas) devices.
AQ/T3001-2021: Technical requirements for barrier explosion-proof storage tanks at fueling stations.
How It Achieves Intrinsic Safety:
Utilizing the physical properties of heat conduction and honeycomb structures of barrier explosion-proof materials, the system effectively prevents combustion and explosion accidents caused by static electricity, lightning strikes, open flames, gunshots, collisions, or misoperation. All pipelines and electrical accessories are equipped with fireproof and explosion-proof controls.
Extreme Safety Testing Results:
Tank loaded halfway with gasoline + Open flame for 1 hour = No Explosion
Tank loaded with 50% gasoline + Gunfire test = No Leakage, No Explosion
To suit different site layouts and traffic flows, we offer multiple configurations:
Code 201: 1 Dispenser (Single or Double Gun); 1 or 2 Compartments; Front opening.
Code 202: 2 Dispensers (Single or Double Gun); 1 or 2 Compartments; Front and Rear opening.
Code 203: 2 Dispensers (Single or Double Gun); 1 or 2 Compartments; Front opening.
Code 204: 4 Dispensers (Single or Double Gun); 1 or 2 Compartments; Front and Rear opening.
Code 206: 2 Dispensers (Single or Double Gun); 1 or 2 Compartments; Side opening.
Code 207: 2 Dispensers (Single or Double Gun); 1 or 2 Compartments; Front and Side opening.
Code 208: 2 Dispensers (Single or Double Gun); 1 or 2 Compartments; Front and Side opening.
Our skid-mounted fueling stations are widely used by enterprises with concentrated fuel needs:
Mining & Aggregates: Open-pit mines, quarries, and mineral processing sites.
Logistics & Express: Logistics parks, freight depots, and courier company fleets.
Construction & Engineering: Commercial concrete mixing plants, construction sites, and engineering machinery yards.
Transportation Hubs: Rail-road intermodal freight yards, ports, and marinas.
Public & Commercial Fleets: Driving schools, taxi companies, bus fleets, and car rental agencies.
Alternative Energy: Methanol fuel filling stations (for both internal and external operations).
To ensure a smooth installation, the following site conditions are required:
Land Area: 3 to 40 square meters for the skid equipment itself. The surrounding vehicle fueling area requires over 600 square meters.
Compliance: The site must meet fire safety conditions, and the distance between the equipment and surrounding buildings must comply with fire prevention spacing regulations.
Utilities: Access to a power supply (220V or 380V) and convenient vehicle ingress/egress.
Infrastructure: A concrete foundation base, equipped with firefighting equipment, and a designated rest station for fueling personnel.
Our systems have been successfully deployed globally in demanding environments, including:
Mining site fueling stations.
Commercial methanol fuel filling stations (Yunnan Province).
Engineering and construction site stations.
Building materials company fueling points.
Internal logistics fleet refueling stations.
