Have you ever stood at a gas station, watching the numbers climb on the pump, and wondered how the handle "clicks" off at the exact second your tank is full? It feels like magic. There are no electronic sensors in your car communicating with the pump, and there are no floating balls like the one in your toilet tank. Yet, the Automatic Shut-off Nozzle manages to stop the flow of fuel perfectly every time, preventing dangerous spills and environmental waste.

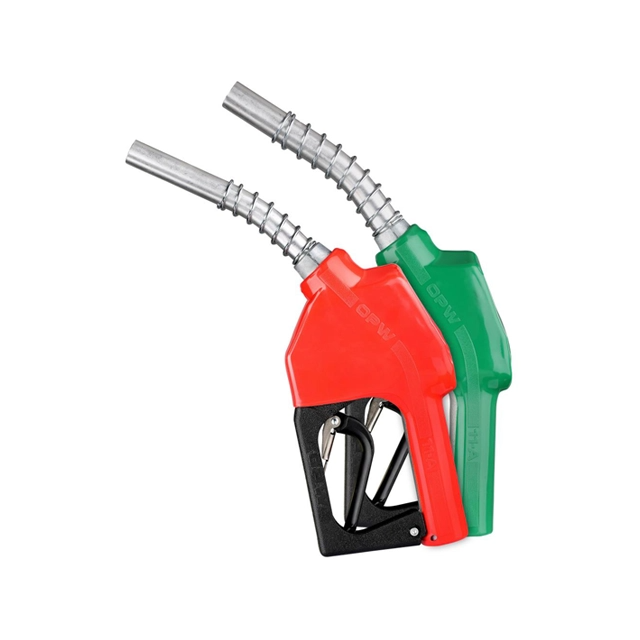

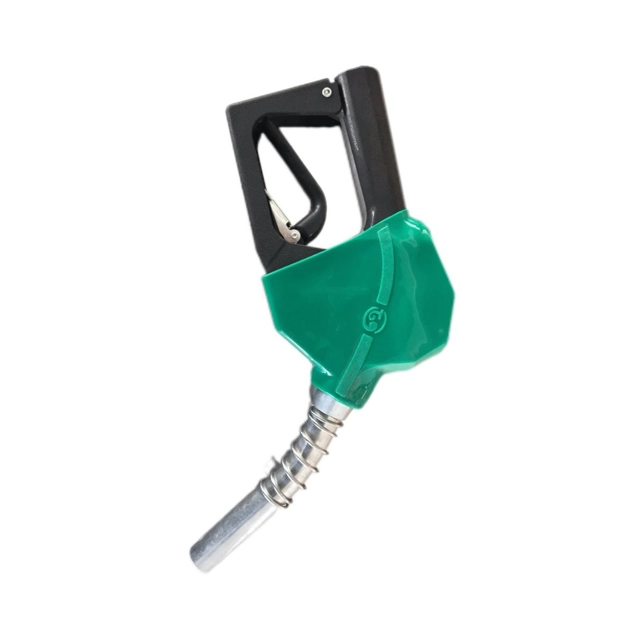

Whether you are using a High flow model for trucks or a standard unit for Gas Stations, the mechanical brain inside the nozzle relies on air pressure changes. In this guide, we will pull back the curtain on the Automatic Shut-off Nozzle, explaining the internal components, the vacuum physics involved, and why this simple mechanical design remains the gold standard for global fueling safety.
The primary reason an Automatic Shut-off Nozzle works so reliably is the Venturi Effect. This principle states that when a fluid (or air) flows through a constricted section of a pipe, its velocity increases while its static pressure decreases. Inside every nozzle, there is a small tube called a Venturi tube.
As gas flows through the main path of the nozzle, it passes a small constriction. This creates a vacuum. This vacuum "sucks" air through a tiny hole located at the very tip of the nozzle spout. As long as that hole is open to the air, the vacuum is satisfied. The air flows freely, and the mechanical assembly remains stable.
However, the moment the fuel level in your tank rises high enough to cover that tiny hole, everything changes. The air can no longer enter. The vacuum suddenly becomes much stronger because it has no source of air to pull from. This sudden spike in suction force is what triggers the mechanical "click" you hear.
To understand how the shut-off happens, we need to look at the internal components. It is a complex assembly of springs, diaphragms, and levers. These parts must work together in a Low pressure environment to ensure the user doesn't end up covered in fuel.
The Spout: The metal tube that goes into your car. It contains the sensing port (the tiny hole).
The Diaphragm: A flexible rubber membrane connected to the shut-off mechanism.
The Sensing Tube: A small passage connecting the sensing port to the diaphragm chamber.
The Main Valve: The heavy-duty seal that stops the fuel flow.
The Lever and Fulcrum: This is what you pull with your hand to start the gas.
When the vacuum increases (because the hole is covered by fuel), it pulls on the diaphragm. The diaphragm is connected to a small pin or "latch." When the diaphragm moves upward due to the vacuum, it pulls the latch out of place. This causes the main lever to lose its pivot point, and a heavy spring snaps the main valve shut instantly. This happens in milliseconds, which is why it works even on a Fast Flow system.
One of the most impressive feats of the Automatic Shut-off Nozzle is that it is entirely mechanical. Gas stations are hazardous environments. Using electrical sensors near highly flammable vapors is a recipe for disaster. This is why engineers perfected the vacuum-trip mechanism.
By using the movement of the fuel itself to trigger the stop, the system is inherently safe. It doesn't matter if the power goes out or if there is a surge; the physics of the vacuum will always remain the same. This makes these nozzles extremely reliable for long-term use at busy for Gas Stations locations.
Furthermore, the mechanical design allows for versatility. You can have a UL Listed Diesel nozzle or a standard gasoline version using the exact same physical principles. The only differences are usually the spout diameter and the internal spring tension to accommodate different flow rates.
The diaphragm is the "brain" of the operation. Let's look at how it manages the transition from flowing to stopped.
Inside the Automatic Shut-off Nozzle, the diaphragm sits between two chambers. One side is open to the atmosphere, and the other is connected to the Venturi vacuum. Under normal conditions, the pressures are balanced enough that a spring holds the diaphragm in a "neutral" position.
Fuel covers the sensing port: Airflow stops.
Vacuum increases: The pressure on one side of the diaphragm drops significantly.
Diaphragm Flexes: The atmospheric pressure on the other side pushes the diaphragm into the vacuum side.
The Latch Releases: The movement of the diaphragm pulls a stainless steel pin.
The Click: The handle drops, and the valve closes.
This mechanism is so sensitive that it can detect the difference between air and foam. Sometimes, if the fuel is "splashing" too much, it can cover the hole prematurely. This is why the pump might click off even when your tank isn't full.
Not all fueling situations are the same. A passenger car needs a different approach than a long-haul semi-truck or an industrial generator. This is where the specifications of the Automatic Shut-off Nozzle become critical.
For large trucks, time is money. They use High flow nozzles designed to move a massive volume of fuel quickly. These nozzles often have a 1 inch BSP or NPT inlet to allow more liquid through. Because the liquid moves so fast, the Venturi effect is even stronger, requiring a more robust diaphragm to prevent "false" shut-offs caused by the sheer turbulence of the fuel.
In contrast, standard nozzles for Gas Stations are tuned for safety and ease of use by the general public. There are also Low pressure variants. These are used in gravity-fed tanks (like on a farm) where there isn't a powerful pump pushing the fuel. In these cases, the Venturi effect is weaker, so the nozzle must be specifically calibrated to trip even with a tiny vacuum.
| Feature | Standard Nozzle | High Flow Nozzle |
| Inlet Size | 3/4 inch | 1 inch BSP / NPT |
| Common Use | Passenger Cars | Trucks / Industrial |
| Flow Rate | ~10-15 GPM | Up to 40+ GPM (Fast Flow) |
| Safety Rating | UL Listed Diesel/Gas | UL Listed Diesel |
We have all experienced the frustration of a nozzle that keeps clicking off every five seconds. While we might think the nozzle is broken, it is usually just doing its job too well.
Splashback: If the fuel neck of your car has a sharp curve, the gas hits the side and splashes back onto the sensing port.
Vapor Recovery: Some for Gas Stations use nozzles with vapor recovery boots. If the boot doesn't seat correctly, it can mess with the pressure balance.
Flow Rate Too High: If you are using a Fast Flow nozzle on a small tank, the air can't escape fast enough. The "backpressure" of the air pushes fuel up the neck, covering the sensor.
This is the dangerous side. If the sensing tube inside the spout is clogged with debris or "gunk," the vacuum can never build up. The nozzle won't "know" the tank is full. This is why regular maintenance of an Automatic Shut-off Nozzle is vital. If you see a nozzle with a bent spout or a clogged tip, it should be replaced immediately.
Because these devices handle flammable liquids, they are subject to intense regulation. A UL Listed Diesel or gas nozzle has passed tests for durability, flow accuracy, and shut-off reliability.
Check the Sensing Port: Ensure the tiny hole at the tip is clear of dirt or ice.
Inspect the Lever: It should move freely without sticking.
Look for Leaks: Any dampness around the diaphragm cover suggests a failure is imminent.
Flow Testing: Periodically check that the Automatic Shut-off Nozzle trips at the correct level using a test tank.
Using the right hardware is essential. For example, using a 1 inch BSP nozzle on a system designed for 3/4 inch will lead to improper pressure readings and potential failure of the shut-off mechanism.
The Automatic Shut-off Nozzle is a masterpiece of mechanical engineering. It solves a complex safety problem without a single wire or computer chip. By harnessing the Venturi effect and the power of a simple vacuum, it ensures that millions of people can fuel their vehicles every day without incident.
From the High flow demands of the trucking industry to the Low pressure needs of agriculture, the core technology remains the same. Understanding how it "knows" when to stop doesn't just satisfy curiosity—it helps us appreciate the invisible safety net surrounding our daily lives.
Q: Can I use a Diesel nozzle for Gasoline?
A: Generally, no. UL Listed Diesel nozzles have a larger spout diameter specifically to prevent people from accidentally putting diesel into a gasoline car (the spout won't fit).
Q: Why does the pump click when I pull the handle all the way?
A: This usually happens on Fast Flow pumps. The turbulence creates a temporary vacuum that trips the diaphragm. Try squeezing the handle halfway to reduce splashback.
Q: Does the nozzle work for gravity-fed tanks?
A: Only if it is a specific Low pressure model. Standard nozzles require a certain amount of pump pressure to create the Venturi vacuum needed to keep the valve open.
