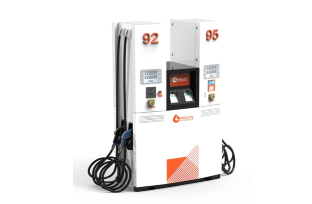

Every time you refuel a vehicle, a complex system of mechanical precision, electronic control, and safety mechanisms operates seamlessly behind the scenes. The modern XC Fuel dispenser represents the pinnacle of this engineering evolution — combining accuracy, automation, and environmental safety to ensure that every drop of fuel is measured, transferred, and billed correctly. Understanding how a fuel dispenser works is essential not only for station operators and technicians but also for businesses that rely on efficient, compliant fueling systems.
At its essence, a fuel dispenser is a metered transfer system designed to deliver liquid fuel from an underground storage tank into a vehicle or container, while simultaneously measuring and displaying the quantity and cost. The XC Fuel dispenser performs three fundamental functions:
| Function | Description | Key Components Involved |
|---|---|---|
| Fuel Transfer | Moves fuel from the underground tank to the nozzle | Submersible pump, suction pipe, valves |
| Measurement | Calculates the exact amount of fuel dispensed | Flow meter, pulser, calibration system |
| Display & Control | Shows quantity, price, and transaction details | CPU board, LCD panel, keypad, printer |
The combination of these systems ensures precision and reliability. The process begins the moment a customer activates the nozzle — and within seconds, the dispenser executes a series of operations controlled by microprocessors and sensors.
The fuel’s journey through an XC Fuel dispenser is a carefully engineered process that prioritizes efficiency and safety.
Activation: When the nozzle trigger is pulled, the dispenser sends a signal to start the submersible or suction pump.
Fuel Flow: Pressurized fuel travels through reinforced pipelines up to the meter.
Measurement: The flow meter accurately records the passing volume.
Delivery: The measured fuel exits through the hose and nozzle into the vehicle tank.
Cut-off: Once the preset volume or payment limit is reached, an automatic shut-off mechanism stops the flow.
To prevent contamination, XC Fuel dispensers include filters and air separators. These components eliminate air bubbles and impurities, ensuring that only pure liquid fuel reaches the customer — maintaining both safety and accuracy.
The flow meter is the heart of every XC Fuel dispenser. It determines how much fuel passes through the dispenser and converts that data into electrical signals that drive the price and volume display.
| Meter Type | Characteristics | Typical Application |
|---|---|---|
| Positive Displacement Meter | Uses mechanical chambers to measure exact volumes | Diesel, gasoline |
| Turbine Meter | Measures flow rate using rotational speed | High-flow commercial applications |
| Coriolis Meter | Employs mass-based measurement | Premium systems for aviation or precision use |

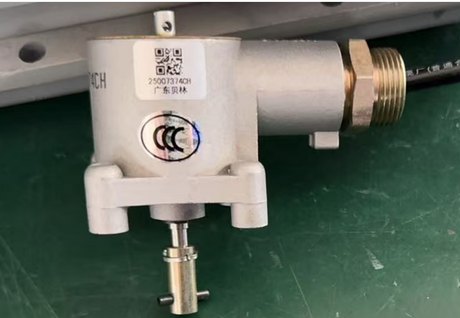

Once the flow meter registers movement, a pulser unit converts this motion into digital pulses. The dispenser’s CPU then calculates the total fuel quantity and price based on calibrated data. This combination of hardware and software ensures compliance with Weights and Measures regulations, minimizing discrepancies between dispensed and billed fuel.
Modern XC Fuel dispensers integrate advanced electronic modules that control and monitor every function of the fueling process.

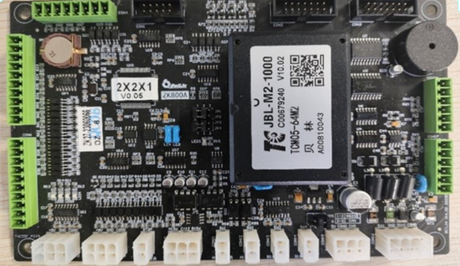

CPU Control Board: The “brain” of the dispenser, managing flow rate, data processing, and communications with payment systems.
Display and Keypad: Provide clear, real-time information for both customers and operators.
Communication Interface: Connects to point-of-sale (POS) terminals, back-office systems, and even IoT platforms for remote monitoring.
These electronics ensure precise pricing, secure transactions, and automatic error detection. In high-end XC models, smart sensors can detect leaks, pressure changes, or tampering — automatically locking the dispenser and alerting maintenance staff.
XC Fuel dispensers can also integrate with automated forecourt systems, enabling:
Cashless or RFID-based refueling
Remote diagnostics
Cloud-based transaction reporting
Preventive maintenance scheduling
This digital transformation has turned the traditional fuel pump into an intelligent data terminal for station operators.
Fuel handling involves significant safety considerations. The XC Fuel dispenser adheres to global safety standards to protect users, operators, and the environment.
| Feature | Purpose |
|---|---|

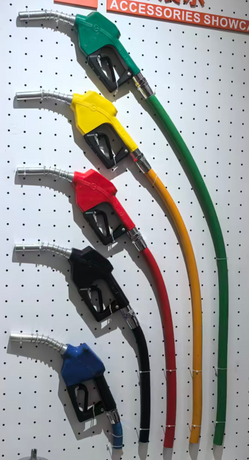

| Automatic Shut-off Nozzle | Stops fuel flow when the tank is full |
| Breakaway Coupling | Prevents spills if a vehicle drives off prematurely |
| Pressure Relief Valve | Balances internal dispenser pressure |
| Anti-static Components | Reduce ignition risk from static electricity |
Periodic calibration ensures that the flow meter maintains accuracy within the legally accepted margin of error. Calibration involves comparing dispensed fuel with a certified standard measure and adjusting the meter settings accordingly.
XC dispensers include vapor recovery systems that minimize emissions of volatile organic compounds (VOCs). By reclaiming and recycling vapors, these systems help fuel stations comply with environmental legislation while improving air quality.
To guarantee long-term reliability, routine maintenance is essential. The XC Fuel dispenser’s modular design simplifies inspection and repair.
| Task | Frequency | Objective |
|---|---|---|
| Check filters and replace if clogged | Monthly | Maintain fuel purity |
| Inspect hoses and nozzles | Weekly | Prevent leaks and drips |
| Verify calibration accuracy | Quarterly | Ensure correct billing |
| Clean electronic display | As needed | Improve user visibility |
| Review system logs | Monthly | Detect early signs of malfunction |
Slow Fuel Flow: Usually caused by a clogged filter or weak pump.
Display Error: May indicate a loose connection in the control board.
Inaccurate Measurement: Requires recalibration or replacement of the flow meter.
An advanced XC Fuel dispenser can often self-diagnose these problems and display error codes to assist technicians in rapid troubleshooting.
Fuel dispensers have evolved far beyond simple mechanical systems. The XC Fuel dispenser series represents this evolution by combining IoT connectivity, cloud analytics, and data-driven maintenance.
Remote Monitoring: Station owners can view live fuel levels, performance stats, and error reports via online dashboards.
Predictive Maintenance: AI-driven analytics forecast when a component may fail, allowing for timely intervention.
Integrated Payment Systems: Support for NFC, QR code, and mobile wallet transactions.
Energy Efficiency: Modern XC dispensers use low-power electronics, reducing operational costs.
This integration of digital intelligence has transformed refueling stations into smart energy hubs capable of managing multiple fuel types, including biofuels and EV charging stations.
For operators, choosing the XC Fuel dispenser brings measurable operational and financial advantages:
| Benefit | Description |
|---|---|
| Enhanced Accuracy | High-precision metering reduces fuel loss |
| Operational Efficiency | Automated controls and diagnostics lower downtime |
| Compliance Assurance | Meets international metrology and safety standards |
| Customer Trust | Transparent measurement and clear displays increase credibility |
| Long-Term ROI | Durable components and smart analytics reduce maintenance costs |
The XC Fuel dispenser’s adaptability makes it suitable for both small retail forecourts and large-scale industrial operations — providing the consistency and reliability that modern fuel management demands.
Understanding how a fuel dispenser works reveals the intricate coordination of mechanics, electronics, and data control that powers every refueling operation. The XC Fuel dispenser exemplifies this sophistication — integrating precision metering, smart control systems, and environmental safeguards into a single cohesive unit. For fuel retailers and industrial users alike, mastering this knowledge ensures optimal performance, compliance, and long-term operational excellence.
1. What is the main function of an XC Fuel dispenser?
Its main function is to accurately transfer and measure fuel from storage tanks to vehicles, while securely processing transaction data.
2. How does an XC Fuel dispenser ensure accuracy?
It uses calibrated flow meters and electronic pulsers that are routinely verified and adjusted according to regulatory standards.
3. What makes the XC Fuel dispenser different from traditional models?
It incorporates IoT-enabled smart systems, self-diagnostic tools, and advanced vapor recovery technologies, enhancing both efficiency and safety.
4. Can an XC Fuel dispenser handle multiple fuel types?
Yes. Many XC models support multi-product configurations, allowing a single dispenser to deliver gasoline, diesel, or even biofuels through separate hoses.
5. How often should calibration be performed?
Typically, every three to six months, depending on local metrological laws and the volume of daily transactions.
6. Is remote monitoring available?
Yes. XC Fuel dispensers can connect to cloud-based management systems, enabling remote supervision of performance, sales, and maintenance.
