Ever wondered how fueling stations avoid dangerous spills? The secret lies in automatic shut-off nozzles. These innovative devices ensure safe, efficient fueling, preventing overflows and protecting the environment. In this article, we’ll dive into how automatic shut-off nozzles work, with a focus on the Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian.
An automatic shut-off nozzle is a specialized fuel dispenser nozzle designed to automatically stop the flow of fuel once the tank or container reaches full capacity. This nozzle is equipped with a mechanism that detects when the fuel level is sufficiently high, triggering the shut-off function to prevent overflows. The key components of an automatic shut-off nozzle include the nozzle itself, a valve, and a shut-off mechanism that works together to stop fuel dispensing once the tank is full.

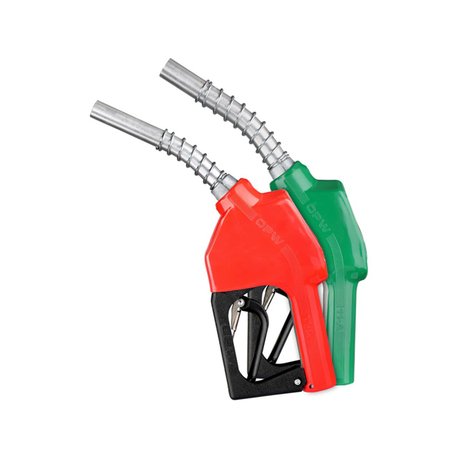

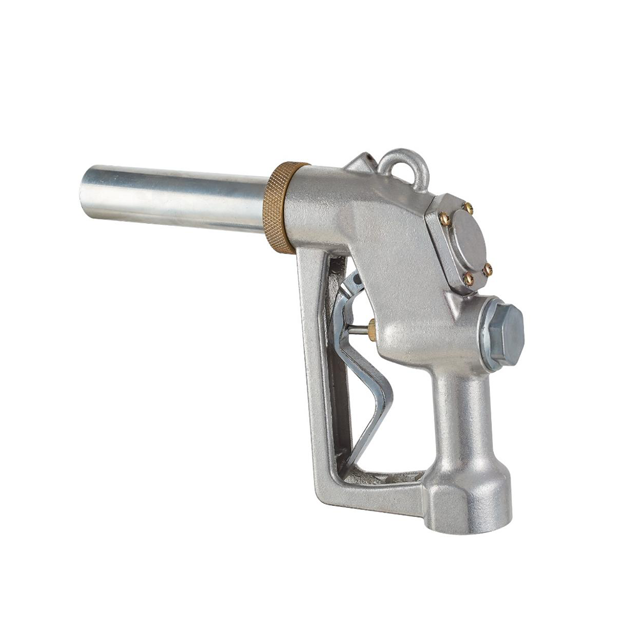

The Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian is an ideal example of this technology, offering a flow range of 0-300L/min and a self-sealing mechanism that activates in 0.1 seconds. This quick shut-off mechanism ensures that refueling operations are not only efficient but also safe, reducing the risk of spills and overflows.
The primary purpose of an automatic shut-off nozzle is to prevent fuel spills during the refueling process. Fuel overflows are not only wasteful, but they can also be hazardous to both people and the environment. Overflows can result in hazardous conditions, including fires, contamination of the ground, and air pollution. By automatically halting the fuel flow when the container is full, these nozzles ensure that fueling is done safely, efficiently, and without unnecessary waste.
In addition to preventing overflows, these nozzles also reduce the need for constant supervision during refueling operations. In unmanned stations, where no attendants are present to monitor the refueling process, automatic shut-off nozzles offer a critical safety feature that prevents overflows and accidents.
At the heart of an automatic shut-off nozzle is a simple yet effective mechanism. As fuel flows through the nozzle and into the container, a sensor inside the nozzle detects the rising fuel level. When the fuel level reaches the designated full point, the nozzle's mechanism automatically triggers the shut-off function, stopping the fuel flow. This action prevents any further fuel from being dispensed, avoiding any risk of spillage or overfill.
For instance, the Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian is designed to work with high precision, ensuring that the fuel flow is immediately stopped once the tank is full. The nozzle is adaptable to various fuel dispensers, with a flow range of 0-300L/min, making it suitable for a variety of refueling systems, from small-scale stations to larger industrial fueling operations.
Many automatic shut-off nozzles, including the Tonglian nozzle, rely on the Venturi effect to facilitate the shut-off mechanism. As fuel flows through the nozzle at high speed, a pressure drop occurs at the nozzle’s tip. This pressure drop creates a vacuum effect, which causes air to be drawn into the nozzle. This change in air pressure signals that the tank is near full, triggering the shut-off mechanism.
The Venturi effect is crucial because it allows for precise detection of the fuel level within the container. This mechanism is both effective and reliable, ensuring that the fuel dispensing process is stopped without human intervention. It’s particularly helpful in ensuring that no fuel is wasted, which contributes to both safety and environmental protection.
Once the tank is filled to the appropriate level, the flow rate and pressure of the fuel change. The nozzle is designed to detect these changes and automatically activate the shut-off function. When the fuel level reaches a specific threshold, the nozzle's sensor reacts to the reduced flow rate and pressure, stopping the fuel flow. The Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian operates within these parameters, making it a reliable option for high-demand fueling environments.
This precise shut-off trigger ensures that no fuel is wasted and eliminates the need for manual intervention, making fueling processes more efficient and reducing the chances of human error.
Automatic shut-off nozzles are critical components in maintaining safety and compliance with industry standards. These nozzles are designed to meet the strict regulations imposed by governing bodies for fuel dispensing systems. Ensuring that fuel is dispensed without spilling is not only important for operational efficiency but also necessary for meeting environmental and safety standards.
The Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian is compliant with international safety standards, ensuring that it can be safely used in a variety of fueling applications, including gas stations, fuel trucks, and industrial fuel dispensers.
Durability is a key consideration when choosing a nozzle for fueling systems. The Tonglian nozzle is made from lightweight aluminum alloy, a material known for its strength, corrosion resistance, and ability to withstand prolonged exposure to fuel. This robust material ensures that the nozzle is not only lightweight and easy to handle but also durable enough to stand up to the wear and tear of frequent use.
The nozzle’s design is carefully crafted to ensure long-lasting performance in harsh refueling environments. Whether in a busy gas station or a remote fueling truck, the nozzle remains reliable and efficient, reducing the need for frequent maintenance and replacement.
Fuel spills can lead to significant environmental damage and operational inefficiency. By automatically stopping the flow of fuel once the tank is full, automatic shut-off nozzles help prevent spills, which can be hazardous to both the environment and the fuel station's operation. The Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian features a self-sealing mechanism that activates in 0.1 seconds, ensuring quick and effective shut-off to minimize any potential fuel waste.
One of the major benefits of automatic shut-off nozzles is their ability to streamline the refueling process. By eliminating the need for manual intervention, these nozzles allow fuel dispensers to operate efficiently, even in unmanned stations. With a flow range of 0-300L/min, the Tonglian nozzle can handle a wide range of refueling needs, ensuring quick and accurate fuel dispensing, which is crucial in maintaining a fast-paced, high-demand environment.
This efficiency not only benefits customers but also reduces labor costs, as attendants are not required to monitor every fueling operation. Automatic shut-off nozzles allow businesses to focus on other aspects of their operation while the nozzles handle fuel dispensing autonomously.
Fueling stations face significant risks when it comes to safety. Fuel spills can lead to fire hazards, environmental contamination, and legal liabilities. By using automatic shut-off nozzles like the Tonglian nozzle, these risks are significantly reduced. The nozzle ensures that fuel is not dispensed once the tank is full, eliminating the possibility of dangerous overflows.
This is particularly important in high-traffic fueling stations or areas where large amounts of fuel are dispensed, such as in fuel trucks or industrial fueling stations. The reliability of these nozzles helps mitigate the risk of accidents, ensuring that fueling operations are safer for both customers and operators.
Automatic shut-off nozzles, such as the Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian, are widely used in gas stations for vehicle refueling. These nozzles are designed to work with a variety of fuel dispensers, making them highly adaptable to different fueling needs. Available in 1/2", 3/4", and 1" nozzle sizes, these nozzles ensure that refueling is quick, safe, and efficient.
Automatic shut-off nozzles are also essential for fuel and water tank trucks, where fuel is dispensed into larger tanks or equipment. These nozzles help ensure that the refueling process is safe, minimizing the risk of spills and ensuring that the tanks are filled accurately and efficiently. The Tonglian nozzle’s adaptability makes it an ideal choice for fuel trucks, as it can be used in both mobile and fixed refueling environments.
The versatility of automatic shut-off nozzles makes them suitable for a wide range of applications beyond gas stations and fuel trucks. Whether used in industrial refueling operations or remote fueling stations, the nozzle’s self-sealing feature ensures that fuel dispensing remains efficient and safe, no matter the environment.
Over time, nozzles can accumulate debris or fuel residue, leading to clogs that can prevent the nozzle from functioning properly. Regular maintenance and cleaning are essential to ensure that the nozzle continues to work as intended. If a nozzle becomes clogged, it may fail to trigger the shut-off mechanism, leading to potential fuel spills.
The shut-off mechanism can also malfunction due to wear and tear or technical issues. This can happen if the nozzle’s sensor or valve becomes damaged. To avoid this, regular inspections and prompt repairs are necessary to maintain the nozzle’s functionality and ensure that fuel dispensing operations remain safe.
Parameter | Value |
Origin | Guangdong, China |
Brand | Beilin |
Model | 3/4.Tonglian, 3/4 OPW, G1 OPW |
Application | Fuel Dispenser |
Size | Standard Size |
MOQ | 1 |
Nozzle Size | 1 inch |
Self-Seal Time | 0.1 seconds |
Flow Range | 0-300L/min |
Fuel Port Diameter | 1/2", 3/4", 1" |
Type | Automatic Shut-off Fuel Nozzle |
Colors | Red, Green, Blue, Yellow, Black |
Packaging | 10 pieces/box, Carton Packaging |
The Automatic Shut-off Nozzle 3/4 OPW G1.5/150L G1 3/4.Tonglian by Guangdong Beilin Energy Equipment Co., Ltd. offers an efficient and safe solution for refueling operations. Its self-sealing mechanism, durable design, and versatility make it an ideal choice for gas stations, fuel trucks, and industrial fueling applications. These nozzles provide numerous benefits, including reducing fuel waste, improving operational efficiency, and lowering the risk of accidents. Whether used in high-demand stations or remote refueling operations, the Tonglian nozzle ensures safe, efficient, and environmentally responsible fueling.
A: An Automatic Shut-off Nozzle is a fuel dispenser nozzle designed to stop the flow of fuel when the tank is full. It uses a self-sealing mechanism to detect the fuel level and automatically shuts off to prevent overflows, ensuring safe and efficient refueling.
A: The Automatic Shut-off Nozzle for Gas Stations operates by sensing the fuel level in a vehicle's tank. Once the tank is full, the nozzle's mechanism is triggered, stopping the fuel flow. This prevents spills and enhances safety during refueling.
A: The Automatic Shut-off Fuel Dispenser Nozzle is crucial for preventing fuel spills and overflows. It helps maintain safety, reduces environmental hazards, and improves fueling efficiency by stopping fuel flow once the tank is full.
A: Yes, Automatic Shut-off Nozzles are versatile and can be used with various fuel dispensers in gas stations, industrial applications, and fuel trucks. They are designed to fit a range of sizes, including 1/2", 3/4", and 1" nozzles.
